ELERO TÜP MOTORLARI 17-18-19 NHK (Redüktörlü)serisi Motorlar 230 V/50 Hz.
ELERO TUBULAR MOTORS 17-18-19 NHK (Manual) series Motors 230 V/50 Hz. |
|
|
ÜRÜN ÖZELLİKLERİ
PRODUCT DESCRIPTION |
ÜRÜN KODU
CODE |
 |

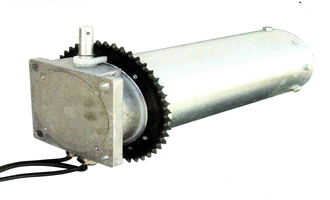

17-D NHK 500 Nm.
Tüp Motor
Tubular Motor |
MO.E17.NH.500 |
18-D NHK 1000 Nm.Tüp Motor
Tubular Motor |
MO.E18.NH.100 |
19-D NHK 1500 Nm.
Tüp Motor
Tubular Motor |
MO.E19.NH.150 |
|

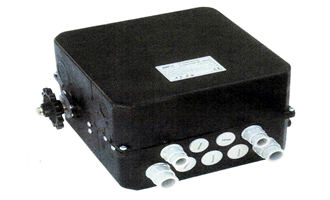

Motor Limit Ayar Kutusu
Spindle Limit Switch |
RC.BBO.00.000
|
| |
TEKNİK BİLGİLER
TECHNICAL SPECIFICATIONS
|
Tork
Torgue
(Nm) |
Hız
Speed
(rpm) |
Boru Çapı
Tube dia.
(mm) |
Volt
Voltage
(V) |
Watt
Watt
(W) |
Frekans
Frequency
(Hz) |
Amper
Current
(A) |
Süre
Time
(dk-min) |
17-D NHK |
500 |
8 |
159 |
3~230/400 |
0.97 KW |
50 |
3.5/2 |
- |
18-D NHK |
1000 |
6 |
180 |
3~230/400 |
2.1 KW |
50 |
7.1/4.1 |
- |
19-D NHK |
1500 |
6 |
213 |
3~230/400 |
3.2 KW |
50 |
12.1/7 |
- |
|
|
